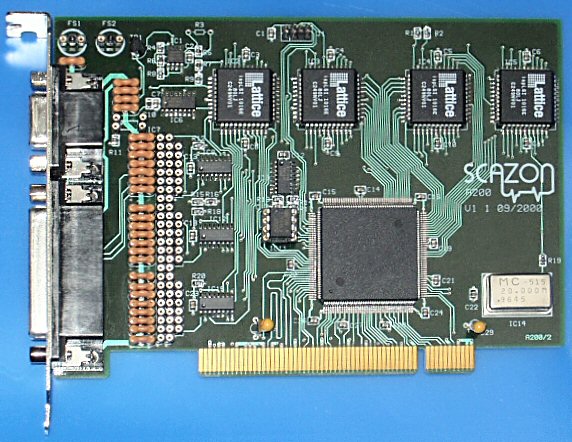

PCI Encoder A200

The Scazon Systems PCI Encoder Interface type A200 is designed to allow easy interfacing of incremental encoders (rotary or linear) to any PC- compatible computer or embedded system with PCI bus expansion slots.
Each card has three 24- bit counters, taking the digital (differential or TTL level) encoder output directly.
A touch probe input provides hardware latching of critical measurement signals. Touch probe debounce period is programmable.
Scale or encoder marker pulses and encoder error signals are also accommodated.
Interrupts are available for data ready or RTC. The card occupies just one PCI slot.


Click for a larger view
- Differential or single ended (TTL) input
- Renishaw™ touch probe compatible
- 3 channel 24 bit counters - hardware latched
- 5V encoder supply
- User-friendly Manual
- Free starter software and C code
- Drivers for Windows 95/ 98/ NT/ 2000/Me
- Follow-up & application support
